Tong manufactures a wide range of heavy-duty bag and box tipping equipment designed to incorporate the latest technology, for efficient and gentle tipping of crop to suit all requirements.
Designed to meet your specific box tipping machines and bag tipper needs, and manufactured with the latest tipping technology and safety features, Tong’s range of control-flow box and bag tippers offer robust and reliable tipping of a wide variety of vegetables. With the gentlest handling of crop in mind.
HIGH PERFORMANCE & GENTLE VEGETABLE BOX TIPPING SOLUTIONS
Available in mild or stainless steel construction, Tong bag and box tipping machines are built to perform in the most demanding situations. Incorporating the latest ram tipping mechanism design, with twin hydraulic rams, and enhanced linkage strength on heavy-duty models, you can be sure a that a Tong box & bag tipper will ensure the very best tipping performance for big bags and boxes up to 2 tonnes.
Manufactured in two standard models, with a choice of a 150-degree box tipper or heavy-duty 160-degree box tipper., Tong tippers offer automatic and complete emptying of boxes and big bags with throughputs of up to 40 tonnes per hour.
BUILT-IN POWER EFFICIENCY
All Tong box tippers are built with an energy efficient power-saving mode which identifies and shuts-off the tipper when not in use.
150 BOX TIPPER
A popular choice for tipping one ton boxes, Tong’s 150 degree box tipper offers reliable tipping with throughputs up to 40 tonnes per hour.

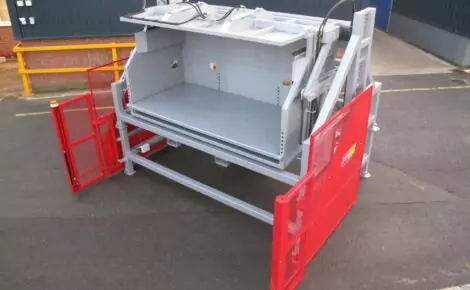

HEAVY DUTY 160 BOX TIPPER
Tong’s Heavy Duty 160 degree box tipper offers efficient tipping of boxes up to 2 tonnes. Built with the latest ram tipping mechanism and enhanced linkage strength, the 160 degree tipper is the 150 tipper’s beefed-up big brother!
HEAVY DUTY 160 BAG TIPPER
Tong’s Heavy Duty 160 degree bag tipper offers efficient tipping of 1 ton big bags. Built with the latest ram tipping mechanism and enhanced linkage strength, the 160 degree tipper offers reliable tipping performance.
HEAVY DUTY 160 BOX & BAG TIPPER
Tong’s Heavy Duty 160 degree box and bag tipper offers the ultimate flexibility in tipping big bags and boxes up to 2 tonnes. Built with the latest ram tipping mechanism and enhanced linkage strength, the 160 degree tipper offers reliable tipping performance.

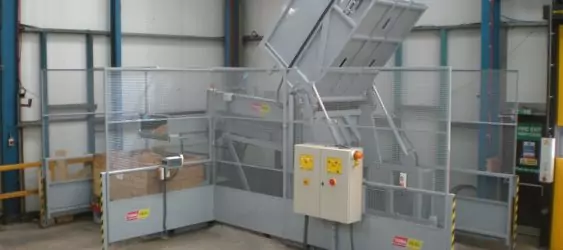

BAG TO BOX TIPPER
Tong’s bag to box and bag tipper offers the ultimate flexibility in tipping boxes and big bags up to 2 tonnes. Built with the latest ram tipping mechanism and enhanced linkage strength, the 160 degree tipper offers reliable tipping performance.

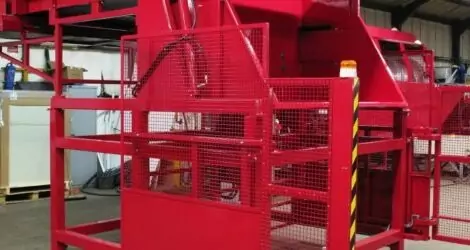

Tong box and bag tippers are designed to meet stringent safety standards, featuring a box/bag movement siren and empty beacon, as well as light guards, which meet the full requirements of EC legislation. The light guards become active when the tipper cradle begins to lift and any breaking of the security beams will stop the machine.

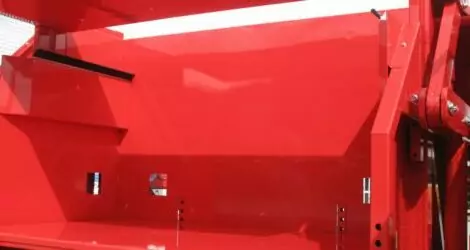

Tong offers an automatic hydraulically operated clamp box lid as an option on all box tippers. The hydraulic lid automatically lowers onto the top of the box once the box is placed in the tipping cradle. This ensures a secure hold of the box within the tipper, and completely removes the chance of anyspillage of crop. When a full clamp lid is fitted, it incorporates a hydraulically opening flow door which opens to release crop once the box is tipped. A half clamp lid can also be fittedmeaning half of the lid is open, so as the tipper lifts in increments, controlled by crop sensors, the crop gently flows out of the box.

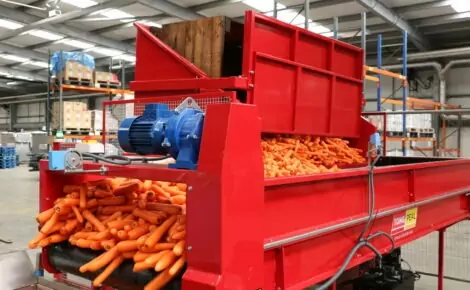

The option of an in-line forward conveyor is a popular choice for a continuous and even feed of crop from the tipper, as well as offering holding capacity whilst the box or bag is changed. The forward conveyor is fitted at the outfeed of the tipper and is available in two standard options – 1.8m long x 2m wide or 3m long x 2.2m wide. The crop conveyors are powered by inverter direct drive variable speed motors, and a crop sensor fitted to the top of the conveyor controls the tipping mechanism and the even flow of crop from the tipper to the conveyor. Should there be no crop or a gap in the flow of crop on any part of the belt, the crop sensor automatically accelerates the belt until crop reaches the end of the belt, then the speed returns to normal.
Similar to the in-line forward conveyor, the option of a cross conveyor is offered at the outfeed of all Tong tippers. This option helps to ensure a continuous flow of crop, and offers crop-holding capacity whilst the box is changed. It is particularly popular where crop is required to flow at a 90 degree angle from the orientation of the tipper, often where space is limited.

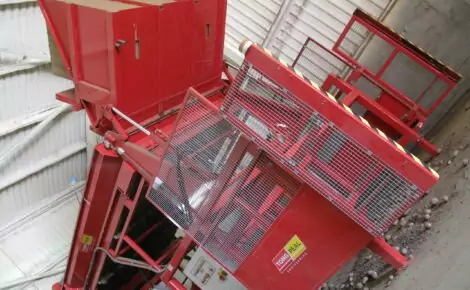

Tong tippers feature the latest ram tipping mechanism design, with twin hydraulic rams, and enhanced linkage strength on heavy duty models.
CUSTOM BUILTBox or Big Bag
Manufactured in mild or stainless steel, Tong offers a robust and reliable tipping solution whether you are tipping 1 ton big bags or 2 ton boxes… and everything in between!
ALL THROUGHPUTSUp to 50tph
With a wide range of standard models suitable for big bag and/or box tipping, Tong offers a tipper to suit any throughput requirement, however large or small.
